适用于OEM设备的定制触摸屏、触摸显示器和面板式电脑
Eagle Touch develops custom touchscreen solutions for OEM equipment, from standalone touch screens and bonded display assemblies to complete industrial touch monitors and panel PCs.
Touch, display, cover glass, mounting, interfaces, power, computing, I/O, enclosure, and branding can be configured around your equipment and operating requirements.
定制单个组件或整个系统
Start with the product level your equipment needs. Each solution can be adjusted around the installation, operating environment, system interface, and production requirements.
定制触摸屏
For equipment manufacturers that already have a display or system platform and need a touch interface designed around the enclosure.
- 定制传感器和盖板的尺寸
- PCAP 或电阻式触摸技术
- 玻璃厚度、印刷、形状和开口
- 手套、湿触感及电气噪声调校
- 与液晶显示屏进行光学粘合或空气粘合
定制触摸屏
For equipment that needs a complete touch and display assembly with the required mounting, video interface, power input, and enclosure.
- 显示屏尺寸、亮度和显示效果
- 开放式框架、面板安装式或封闭式结构
- HDMI、DisplayPort、VGA、DVI、USB 或串行接口
- 定制电源输入和控制功能
- 前面板保护和光学粘合选项

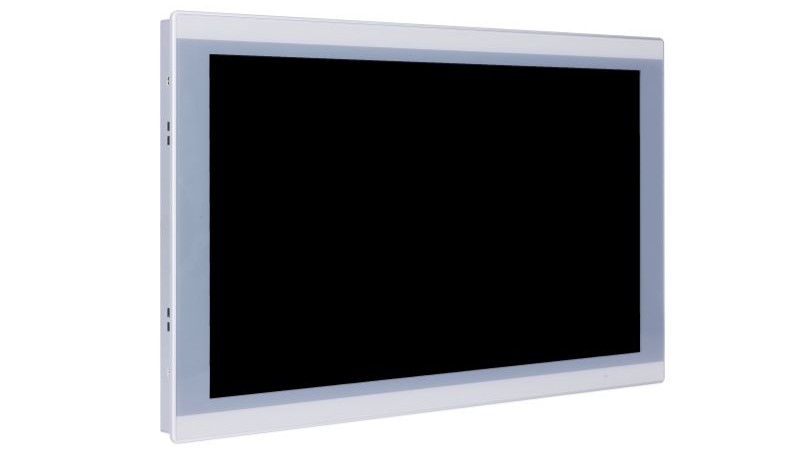

定制式面板电脑
For equipment requiring touch, display, computing, connectivity, power, and mechanical integration in one production-ready system.
- 英特尔或ARM计算平台
- 内存、存储、操作系统和固件
- 自定义 USB、LAN、COM、CAN、GPIO 和视频 I/O
- 无风扇散热与供电系统设计
- 定制外壳、安装、品牌标识和标签
哪些内容可以定制？
The final configuration can include only the parts your project needs, from the front glass and touch interface to a complete industrial computing system.
| 系统区域 | 可选定制选项 |
|---|---|
| 触摸界面 | PCAP or resistive touch, sensor size, cover glass, glass thickness, printing, shape, openings, touch controller, glove operation, wet-touch behavior, stylus support, and noise tuning. |
| 显示屏 | LCD size, resolution, brightness, viewing angle, operating temperature, sunlight readability, backlight control, and optical bonding. |
| 机械结构 | External dimensions, bezel, enclosure, open-frame, panel-mount, embedded mounting, VESA mounting, connector position, and installation structure. |
| 接口 | HDMI, DisplayPort, VGA, DVI, LVDS, eDP, USB, RS-232, RS-485, LAN, CAN, GPIO, audio, antenna, and application-specific connector layouts. |
| 电源 | DC input range, connector type, internal power module, power button, brightness controls, auto-dimming, ignition control, and power-state behavior. |
| 计算平台 | Intel or ARM processor, memory, storage, operating system, BIOS settings, firmware, watchdog, TPM, and system image. |
| 环境要求 | Operating temperature, front protection, vibration considerations, high brightness, water exposure, dust exposure, and EMC-related touch tuning. |
| 制作与品牌建设 | Logo printing, housing color, labels, packaging, part numbers, approved BOM, drawing control, firmware version, and inspection requirements. |
您的设备决定了配置
A useful custom solution starts with the actual installation, not with a fixed product list.
We review how the product will be installed, operated, connected, and maintained before defining the touch screen, monitor, or panel PC configuration.
安装空间
Available opening, overall dimensions, mounting points, connector direction, enclosure depth, and service access.
运行环境
Indoor or outdoor use, temperature range, lighting conditions, water, dust, vibration, gloves, and electrical noise.
系统连接
Host computer, video signal, touch interface, power input, communication ports, peripherals, and cable routing.
生产要求
Prototype quantity, annual demand, approval process, delivery schedule, lifecycle target, labeling, and packaging.
针对不同设备需求的定制化解决方案
These examples show how touch, display, mechanical, interface, power, and computing requirements can be combined for different types of equipment.
高亮度触摸显示器
Developed around outdoor readability, front protection, custom cover glass, and integration with the charging equipment control system.
- 10.1英寸显示屏
- 1,000尼特的亮度
- 带 6 毫米盖板的 PCAP 触摸屏
- 光学粘接
- HDMI视频和直流电源输入
- 系统级别的IK10目标
阳光下可读的工业显示屏
Configured around outdoor viewing conditions, wide temperature operation, front glass requirements, and the customer’s host-system interface.
- 10.4英寸工业显示屏
- 1,300尼特高亮度液晶显示屏
- 宽温显示模块
- 带 USB 接口的 EETI 触摸控制器
- 定制盖板玻璃
- 光学粘接
带保护层的触摸屏总成
Designed around outdoor visibility, vandal resistance, automatic brightness adjustment, and compatibility with the existing equipment controller.
- 15英寸高亮度显示屏
- 1,000尼特的亮度
- 带 6 毫米盖板的 PCAP 触摸屏
- 防眩光和防反射处理
- 自动亮度控制
- HDMI、VGA 和 12 V 直流输入
带专用I/O的定制面板式电脑
Built around the customer’s software platform, communication interfaces, installation space, and equipment power system.
- 15.6英寸触摸屏
- 英特尔计算平台
- 16 GB 内存和 1 TB 存储空间
- 双2.5G以太网端口
- USB、COM、DisplayPort 和 TPM 2.0
- 内部 24 V 电源配置
Final specifications are defined according to each project’s application, validation requirements, and production scope.
从定制需求到量产的清晰路径
Each stage confirms the details required for the next decision, from the initial requirement review to an approved production configuration.
定义自定义作用域
We review the application, available drawings, product level, dimensions, operating environment, interfaces, power, computing requirements, target quantity, and timeline.
构建并验证解决方案
After the drawing and configuration are confirmed, the prototype is checked for mechanical fit, touch behavior, display performance, interfaces, power, and system operation.
发布与生产控制
Production follows the approved drawing, specification, BOM, firmware, labeling, and inspection criteria. Approved changes and component alternatives are managed for repeat orders.
已批准的配置成为生产基准
A custom product must remain consistent after the first prototype. Drawings, key components, firmware, assembly requirements, and inspection criteria are controlled against the approved configuration.
Production capacity for touch assemblies, monitors, and integrated systems.
制定了生产和质量控制程序。.
图纸、物料清单、固件以及已批准变更的跟踪。.
Inspection and burn-in conditions defined according to the product and project.
请将您现有的资料发送给我们
在联系我们之前，您无需提供完整的规格说明。.
A drawing, existing product number, enclosure dimensions, photos, interface list, or a short description of the application is enough for an initial review.
有用的项目信息
- 产品级别：触摸屏、显示器或面板式电脑
- 所需尺寸或可用安装空间
- 室内或室外运行条件
- 触控、显示、界面、电源或计算需求
- 图纸、照片或现有产品信息
- 原型和预计生产数量
Initial project feedback is normally provided after the available information has been reviewed.
