10.1" · INDUSTRIAL MONITOR

10.1" Industrial Monitor and Touch Display Models

Factory-direct 10.1 inch industrial monitor and touch display models for OEM equipment, control panels, kiosks, EV charging terminals, automation systems, outdoor-facing terminals, and embedded HMI projects. Available with touch or non-touch options, open frame, panel mount, VESA mount, high-brightness display, cover glass, interface, and custom structure support.

Factory Direct 10.1" Industrial Display Touch / Non-Touch Options High Brightness Options OEM Customization Fast Quotation
10.1"Industrial Monitor

Browse available 10.1 inch industrial monitor and touch display models below. These models are suitable for embedded HMI systems, equipment panels, kiosks, EV charging terminals, automation devices, outdoor-facing terminals, and OEM equipment integration.

This page is mainly for 10.1" model selection and quotation. To compare other screen sizes, mounting structures, brightness levels, and touch options, explore our full range of industrial display monitors and touch monitors.

AVAILABLE MODELS

Available 10.1" Industrial Monitor Models

Select a standard 10.1" industrial monitor model below or use it as the base model for OEM customization. We can review the mounting structure, touch type, brightness, interface, cover glass, operating environment, and quantity according to your project requirements.

10.1 inch industrial touch monitor with black brushed metal front bezel on white background

ETH101TCIPA01

10.1" Panel Mount Touch Monitor

10.1" Industrial Monitor Outdoor Monitor Panel Mount
  • Size: 10.1"
  • Resolution: 1280 × 800
  • Brightness: 1000 nits
  • Touch Type: PCAP Touch Screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request
10.1 inch industrial touch monitor with black brushed metal front bezel on white background

ETH101TCIPA09

10.1" Sunlight Readable Touch Monitor

10.1" Industrial Monitor Outdoor Monitor Panel Mount
  • Size: 10.1"
  • Resolution: 1280 × 800
  • Brightness: 1200 nits, with Auto-Dimming Function
  • Touch Type: PCAP touch screen with water droplet tolerance and UV-resistant treatment
  • Cover Glass: 3 mm tempered cover glass, AG + AR treated
  • Bonding Type: Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Power Supply: DC 9 - 36 V
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount
sunlight readable Open frame touch monitor with mounting brackets

ETH101TCOPA03-6

10.1" Sunlight Readable Touch Monitor

10.1" Industrial Monitor Outdoor Monitor Open Frame
  • Size: 10.1"
  • Resolution: 1280 × 800
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen, supports water droplet touch and UV-resistant treatment.
  • Vandal-resistant: 6 mm tempered cover glass provides IK10-rated impact protection for public-use and vandal-resistant applications.
  • Bonding Type: Optical bonding with OCR / OCA
  • Interface: HDMI + VGA + USB Touch
  • Operating Temp.: -20°C to +70°C
  • IP Rating: Front IP65 waterproof protection with sealing gasket for panel-mounted installation.
  • Mounting Structure: Open Frame Mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request

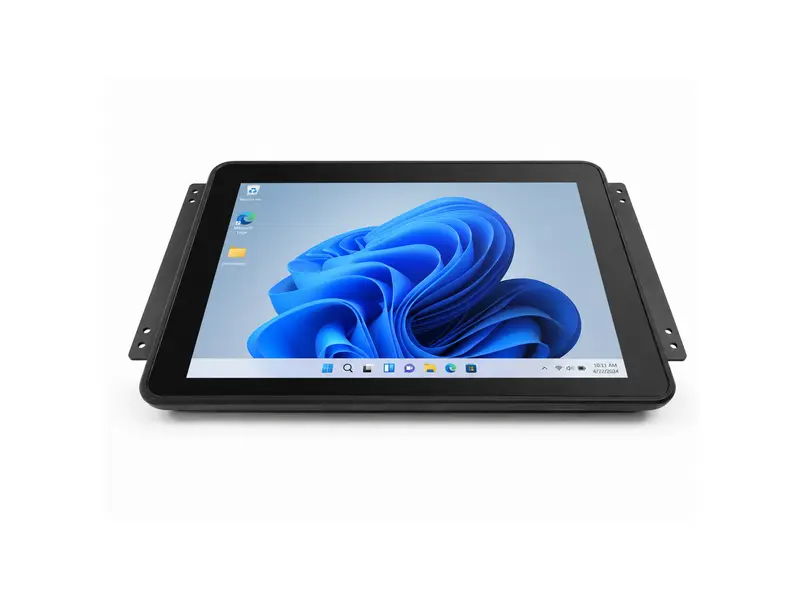

10.1" pure flat Open frame industrial touch monitor with side mounting brackets

ETT101CIMB01

10.1" Industrial Touch Monitor

10.1" Industrial Monitor Open Frame
  • Size: 10.1"
  • Resolution: 1280 × 800
  • Brightness: 350 nits
  • Touch Type: PCAP Touch Screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Flush Mount / Open Frame Mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request
Industrial open frame touch monitors in 7, 10.1, 13.3 and 15.6-inch sizes

ETT101OP003

10.1" Open Frame Touch Monitor

10.1" Industrial Monitor Open Frame
  • Size: 10.1"
  • Resolution: 1280 × 800
  • Brightness: 350 nits
  • Touch Type: PCAP
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Open frame
  • Customization Available: Cover glass / brightness / interface / bracket
21.5" 23.8",27",10.1 inch metal frame touch monitor with black front bezel

ETT101TCFPC01-6

10.1″ IK10 Industrial Touch Monitor

10.1" Industrial Monitor Open Frame
  • Size: 10.1"
  • Resolution: 1280 × 800
  • Brightness: 350 nits
  • Touch Type: PCAP Touch Screen
  • Cover Glass: 6 mm tempered cover glass
  • Impact Protection: IK10-rated front protection
  • Interface: HDMI + VGA + USB Touch
  • Power Supply: DC 12 V, 3 A
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: VESA / Embedded Mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request

Not sure which 10.1" model is suitable? Send us your application, mounting method, brightness target, touch type, interface, operating environment, and estimated quantity. We will help check the closest available model.

CONFIGURATION & RFQ REVIEW

Need a Custom 10.1" Industrial Monitor?

When a standard 10.1 inch industrial monitor does not fully match your project, please send us your application, working environment, display requirements, mounting method, interface needs, and estimated quantity. We will check whether a standard model can be used directly, whether small adjustments are enough, or whether a custom version is needed.

Application & Environment

  • Application project or equipment type
  • Industry or final use scenario
  • Indoor, semi-outdoor, or outdoor-facing use
  • Operating temperature or special environment requirements
  • Industrial-use, public-use, cabinet-integrated, or embedded HMI installation

Display Specifications

  • Required 10.1" display format
  • Resolution or display ratio requirement
  • Brightness target
  • Standard, high-brightness, or sunlight-readable display
  • Landscape or portrait use requirement

Touch & Interface

  • PCAP touch, resistive touch, or non-touch version
  • USB, I²C, or RS232 touch interface
  • HDMI, VGA, DVI, DP, or other video input
  • Power input requirement
  • Cover glass, AG / AR / AF, or printing requirement

Mounting & Project Details

  • Open frame, panel mount, VESA mount, flush mount, or custom structure requirement
  • Drawing or available installation space, if available
  • Standard model preference, if available
  • Sample quantity and estimated annual quantity
  • Target schedule or project stage

With these details, we can recommend a suitable 10.1" industrial monitor model, confirm whether customization is required, and provide a standard or custom quotation.
