INDUSTRIAL MONITOR · PANEL MOUNT · OEM/ODM READY

Panel Mount Industrial Monitor Models

Factory-direct panel mount industrial monitor models for OEM equipment, control cabinets, industrial HMI systems, kiosks, automation equipment, and embedded display projects. Available with touch or non-touch configuration, brightness, interface, front panel, and OEM customization options.

Factory Direct 7" to 27" Options Touch / Non-Touch Options OEM Customization Fast Quotation

Browse available panel mount industrial monitor models below. These panel mount monitor models can be used as standard products or as base models for OEM equipment, industrial HMI systems, control cabinets, kiosks, and embedded display projects.

This page is mainly for model selection and quotation. If you need detailed guidance about panel cutout, mounting depth, rear clearance, front protection, or panel mount integration, please visit our panel mount touch monitor integration guide.

AVAILABLE MODELS

Panel Mount Industrial Monitor Models

Select a standard panel mount monitor model below or use it as the base model for OEM customization. We can review the screen size, resolution, brightness, touch or non-touch configuration, interface, front panel requirement, and quantity according to your project needs.

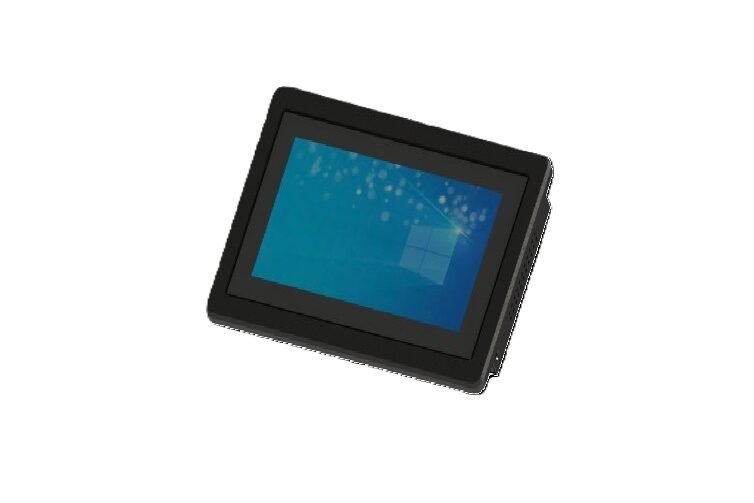

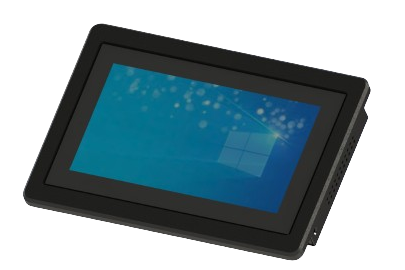

7 inch industrial touch monitor with black brushed metal front bezel on white background

ETH070TCIPA02

7" Panel Mount Touch Monitor

7" Industrial Monitor Outdoor Monitor Panel Mount
  • Size: 7"
  • Resolution: 1024 × 600
  • Brightness: 1000 nits
  • Touch screen: Pcap Touch Screen
  • Interface: HDMI + VGA + USB Touch
  • Working temperature: -20°C to +70°C
  • IP degree: IP65 front waterproof
  • Power supply: 12VDC
  • Mounting Structure: Panel Mount
  • Customization Available: Cover glass / brightness / interface / bracket
10.1 inch industrial touch monitor with black brushed metal front bezel on white background

ETH101TCIPA01

10.1" Panel Mount Touch Monitor

10.1" Industrial Monitor Outdoor Monitor Panel Mount
  • Size: 10.1"
  • Resolution: 1280 × 800
  • Brightness: 1000 nits
  • Touch Type: PCAP Touch Screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request
10.1 inch industrial touch monitor with black brushed metal front bezel on white background

ETH101TCIPA09

10.1" Sunlight Readable Touch Monitor

10.1" Industrial Monitor Outdoor Monitor Panel Mount
  • Size: 10.1"
  • Resolution: 1280 × 800
  • Brightness: 1200 nits, with Auto-Dimming Function
  • Touch Type: PCAP touch screen with water droplet tolerance and UV-resistant treatment
  • Cover Glass: 3 mm tempered cover glass, AG + AR treated
  • Bonding Type: Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Power Supply: DC 9 - 36 V
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount
10.4 inch industrial touch monitor with black brushed metal front bezel on white background

ETT104TCIPA00

10.4" Panel Mount Touch Monitor

10.4" Industrial Monitor Panel Mount
  • Size: 10.4"
  • Resolution: 1024 × 768
  • Brightness: 500 nits
  • Touch Type: PCAP Touch Screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • Power supply: 12V DC
  • Mounting Structure: Panel Mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request
12.1 inch industrial touch monitor with black brushed metal front bezel on white background

ETH121TCIPA00

12.1" Panel Mount Touch Monitor

12.1" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 12.1"
  • Resolution: 1024 × 768
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Power Supply: 12V DC
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Panel Mount
  • IP Rating: Front IP65
  • Customization: Cover glass, brightness, interface and mounting structure available on request
12.1 inch resistive panel mount touch monitor on white background

ETH121TROMA01

12.1" Industrial Resistive Touch Monitor

12.1" Industrial Monitor Panel Mount VESA
  • Size: 12.1"
  • Resolution: 1280 × 800
  • Brightness: 1000 nits
  • Touch Type: 5 Wire Resistive Touch Screen
  • Interface: HDMI + VGA + USB Touch
  • Power supply: DC 12V
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Panel Mount
  • IP Rating: Front IP65
  • Customization: Touch Screen,brightness, interface and mounting structure available on request
15，17 inch industrial touch monitor with black brushed metal front bezel on white background

ETH150TCIPA00

15" Panel Mount Touch monitor

15" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 15"
  • Resolution: 1024 × 768
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15.6 inch widescreen industrial touch monitor with black brushed metal front bezel on white background

ETH156TCIPA00

15.6" Panel Mount Touch Monitor

15.6" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 15.6"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP Touch screen , AG surface treatment
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15.6 inch resistive panel mount touch monitor on white background

ETT156TROMA01

15.6" Industrial Monitor with Resistive touch screen

15.6" Industrial Monitor Panel Mount VESA
  • Size: 15.6"
  • Resolution: 1920 × 1080
  • Brightness: 450 nits
  • Touch Type: 5 Wire Resistive Touch Screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Panel Mount / VESA
  • IP Rating: Front IP65
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15，17 inch industrial touch monitor with black brushed metal front bezel on white background

ETH170TCIPA00

17" Panel Mount Touch Monitor

17" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 17"
  • Resolution: 1280 × 1024
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen , AG surface treatment
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Panel Mount / VESA
  • IP Rating: Front IP65
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5,21.5,23.8,27 ,32"inch aluminum front panel mount touch monitor on white background

ETH185CT4IPF01

18.5" Sunlight Readable Touch Monitor

18.5“ Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 18.5"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen , AG surface treatment
  • Cover Glass: 4 mm tempered cover glass
  • Vandal Resistance: Vandal-resistant front design
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5,21.5,23.8,27 ,32"inch aluminum front panel mount touch monitor on white background

ETH185TCIPA00

18.5" Panel Mount Touch Monitor

18.5“ Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 18.5"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen , AG surface treatment
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Panel Mount / VESA
  • IP Rating: Front IP65
  • Customization: Cover glass, brightness, interface and mounting structure available on request
19 inch industrial touch monitor with black brushed metal front bezel on white background

ETH190TCIPA00

19“ Panel Mount Touch Monitor

19" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 19"
  • Resolution: 1280 × 1024
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen, AG surface treatment.
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5,21.5,23.8,27 ,32"inch aluminum front panel mount touch monitor on white background

ETH215TCIPA00

21.5" High Brightness Touch Monitor

21.5" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 21.5"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5,21.5,23.8,27 ,32"inch aluminum front panel mount touch monitor on white background

ETH238TCIPA00

23.8" High Brightness Touch Monitor

23.8" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 23.8"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen with AG surface treatment
  • Bonding Type: Air bonding, Support Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5,21.5,23.8,27 ,32"inch aluminum front panel mount touch monitor on white background

ETH320TCIPA00

32" High Brightness Touch Monitor

32“ Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 32”
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP Touch Screen with AG Surface Treatment
  • Cover Glass: 3 mm tempered cover glass
  • Bonding Type: Air bonding
  • Interface: HDMI + VGA + USB Touch
  • Power Supply: DC 12V / AC 220V
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request

Not sure which model is suitable? Send us your application, working environment, required size, brightness target, interface, and estimated quantity. We will help check the closest available model.

CUSTOMIZATION & RFQ REVIEW

Need a Custom Panel Mount Industrial Monitor?

If you cannot find a standard panel mount industrial monitor that fully matches your project, please send us your application, working environment, required size, display specifications, interface needs, front panel requirement, and estimated quantity. We will check whether a standard model can be used directly, whether small adjustments are enough, or whether a custom version is needed.

Application & Environment

  • Application project or equipment type
  • Industry or final use scenario
  • Indoor, semi-outdoor, or outdoor-facing use
  • Operating temperature or special environment requirements
  • Industrial-use, public-use, or cabinet-integrated installation

Size & Display Specifications

  • Required screen size
  • Resolution or display ratio requirement
  • Brightness target
  • Standard, high-brightness, or sunlight-readable display
  • Landscape or portrait use requirement

Touch & Interface

  • PCAP touch, resistive touch, or non-touch version
  • USB, I²C, or RS232 touch interface
  • HDMI, VGA, DVI, DP, or other video input
  • Power input requirement
  • Touch operation requirement, if special

Front Panel & Project Details

  • Front frame, flat front, or custom front panel requirement
  • Cover glass, AG / AR / AF, or printing requirement
  • Drawing or available installation space, if available
  • Sample quantity and estimated annual quantity
  • Target schedule or project stage

With these details, we can recommend a suitable panel mount industrial monitor model, confirm whether customization is required, and provide a more accurate quotation.
