Industrial VESA Mount Touchscreen Monitors

Industrial touch monitors for VESA-mounted machine interfaces, operator workstations and OEM equipment. Compare PCAP, resistive touch and non-touch models with standard or high-brightness displays. Confirm the mounting pattern and enclosure requirements for your selected model.

Browse Models
PCAP / Resistive / Non-Touch Standard & High Brightness OEM Customization
AVAILABLE MODELS

Available VESA Mount Monitor Models

Compare screen sizes, brightness and touch options below. Expand each model’s specifications for more detail, or select Enquire Now to ask about a particular model.

10.4-inch iron-frame industrial touch monitor with VESA and embedded mounting

ETH104TCFPB01

10.4" Sunlight Readable Touch Monitor

10.4" Industrial Monitor Outdoor Monitor Open Frame VESA
  • Size: 10.4"
  • Resolution: 1024 × 768
  • Brightness: 1200 nits
  • Touch Type: PCAP Touch Screen
  • Cover Glass: 3mm thickness Cover glass
  • Interface: HDMI + VGA + USB Touch
  • Power supply: DC 12 V
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Open Frame / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
12.1-inch panel mount industrial touch monitor for equipment

ETH121TCIPA00

12.1" Panel Mount Touch Monitor

12.1" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 12.1"
  • Resolution: 1024 × 768
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Power Supply: 12V DC
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Panel Mount / VESA
  • IP Rating: Front IP65
  • Customization: Cover glass, brightness, interface and mounting structure available on request
12.1-inch panel mount resistive touch screen monitor with 1280 × 800 industrial display

ETH121TROMA01

12.1" Industrial Resistive Touch Monitor

12.1" Industrial Monitor Panel Mount VESA
  • Size: 12.1"
  • Resolution: 1280 × 800
  • Brightness: 1000 nits
  • Touch Type: 5 Wire Resistive Touch Screen
  • Interface: HDMI + VGA + USB Touch
  • Power supply: DC 12V
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Panel Mount / VESA
  • IP Rating: Front IP65
  • Customization: Touch Screen,brightness, interface and mounting structure available on request
12.1-inch 16:10 open frame touch monitor with front step for flush mounting

ETT121TCOPA01

12.1” Open Frame Touch Monitor

12.1" Industrial Monitor Open Frame VESA
  • Size: 12.1"
  • Resolution: 1280 × 800
  • Brightness: 500 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Power Supply: DC 12V
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Open Frame / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15-inch iron-frame industrial touch monitor with VESA and embedded mounting

ETH150TCFPC02-6

15" Sunlight Readable Touch Monitor

15" Industrial Monitor Outdoor Monitor Embedded Open Frame VESA
  • Size: 15"
  • Resolution: 1024 × 768
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen
  • Cover Glass: 6 mm tempered cover glass, AG surface Treatment
  • Impact Protection: IK10-rated front protection
  • Bonding Type: Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Power supply: DC 12V / 4A
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Open frame / VESA / Embedded
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15-inch panel mount industrial touch monitor with 1024 × 768 resolution

ETH150TCIPA00

15" Panel Mount Touch monitor

15" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 15"
  • Resolution: 1024 × 768
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15-inch iron-frame industrial touch monitor with VESA and embedded mounting

ETT150TCFPC02-6

15" IK10 Industrial Touch Monitor

15" Industrial Monitor Open Frame VESA
  • Size: 15"
  • Resolution: 1024 × 768
  • Brightness: 350 nits
  • Touch Type: PCAP Touch Screen
  • Cover Glass: 6 mm tempered cover glass
  • Impact Protection: IK10-rated front protection
  • Interface: HDMI + VGA + USB Touch
  • Power Supply: DC 12V
  • Mounting Structure: VESA / Embedded / Open Frame Mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15-inch ,17inch, 19inch 4:3 open frame touch monitor with front step for flush mounting

ETT150TCOPA00

15" Open Frame Touch Monitor

15" Industrial Monitor Open Frame VESA
  • Size: 15"
  • Resolution: 1024 × 768
  • Brightness: 350 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Power Supply: DC 12V
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Open frame Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15-inch 1024 × 768 open frame industrial touch monitor for embedded equipment

ETT150TCOPA02

15" Open Frame Touch Monitor

15" Industrial Monitor Open Frame VESA
  • Size: 15"
  • Resolution: 1024 × 768
  • Brightness: 350 nits
  • Viewing angle: 88/88/88/88
  • Touch Type: PCAP Touch Screen
  • Interface: VGA + HDMI + DP
  • Power supply: DC 12 V, 3 A via Aviation Connector
  • Mounting Structure: VESA / Open Frame / Embedded
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15.6-inch panel mount industrial touch monitor for equipment integration

ETH156TCIPA00

15.6" Panel Mount Touch Monitor

15.6" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 15.6"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP Touch screen , AG surface treatment
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15.6-inch open frame touch monitor with front step for flush mounting

ETH156TCOPA03

15.6" Sunlight Readable Touch Monitor

15.6" Industrial Monitor Outdoor Monitor Embedded Open Frame VESA
  • Size: 15.6"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen with water droplet tolerance and UV-resistant treatment
  • Cover Glass: 3 mm / 6 mm tempered cover glass, AG surface treatment
  • Vandal Resistance: Vandal-resistant front design
  • Bonding Type: Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65 with sealing gasket
  • Mounting Structure: Open frame / VESA / Embedded
  • Customization: Cover glass, brightness, interface and mounting structure available on request

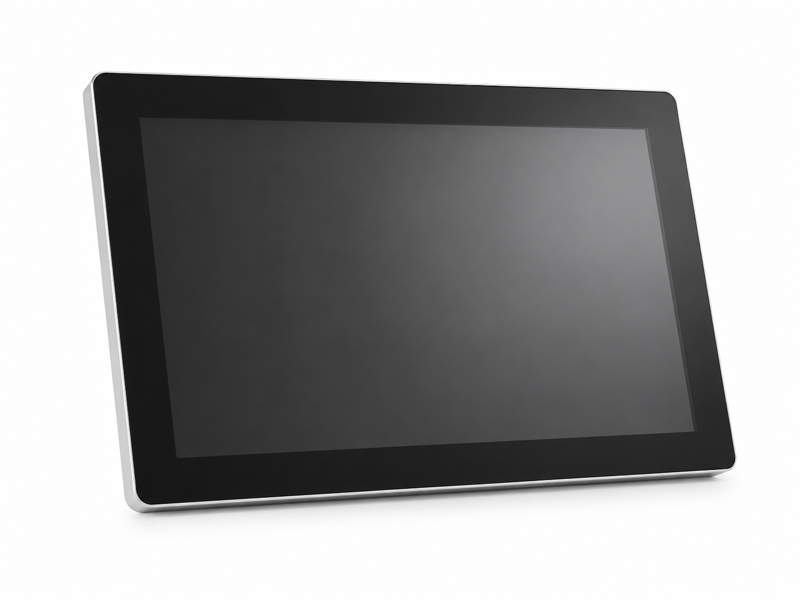

15.6-inch pure flat PCAP industrial touch monitor

ETT156TCIMB02

15.6" Touch Screen Monitor

15.6" Industrial Monitor VESA
  • Size: 15.6"
  • Resolution: 1920 × 1080
  • Brightness: 300 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Power supply: DC 12V / 4A
  • Operating Temperature: 0°C to +50°C
  • Mounting Structure: Pure flat design with VESA
15.6-inch panel mount resistive touch screen monitor with 1920 × 1080 Full HD display

ETT156TROMA01

15.6" Industrial Monitor with Resistive touch screen

15.6" Industrial Monitor Panel Mount VESA
  • Size: 15.6"
  • Resolution: 1920 × 1080
  • Brightness: 450 nits
  • Touch Type: 5 Wire Resistive Touch Screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Panel Mount / VESA
  • IP Rating: Front IP65
  • Customization: Cover glass, brightness, interface and mounting structure available on request
17-inch panel mount industrial touch monitor for equipment integration

ETH170TCIPA00

17" Panel Mount Touch Monitor

17" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 17"
  • Resolution: 1280 × 1024
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen , AG surface treatment
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Panel Mount / VESA
  • IP Rating: Front IP65
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15-inch ,17inch, 19inch 4:3 open frame touch monitor with front step for flush mounting

ETT170TCOPA00

17" Open Frame Touch Monitor

17" Industrial Monitor Open Frame VESA
  • Size: 17"
  • Resolution: 1280 × 1024
  • Brightness: 250 nits
  • Touch Type: PCAP Touch Screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: 0°C to +50°C
  • Mounting Structure: Open frame / VESA mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5-inch,21.5",23,8",27",32" panel mount industrial touch monitor for equipment

ETH185CT4IPF01

18.5” Sunlight Readable Touch Monitor

18.5“ Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 18.5"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen , AG surface treatment
  • Cover Glass: 4 mm tempered cover glass
  • Vandal Resistance: Vandal-resistant front design
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5-inch,21.5",23,8",27",32" panel mount industrial touch monitor for equipment

ETH185TCIPA00

18.5" Panel Mount Touch Monitor

18.5“ Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 18.5"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen , AG surface treatment
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Panel Mount / VESA
  • IP Rating: Front IP65
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5-inch,21.5",23.8", 27", 32" open frame touch monitor with front step for flush mounting

ETT185OP001

18.5" Open Frame Touch Monitor

18.5“ Industrial Monitor Open Frame VESA
  • Size: 18.5"
  • Resolution: 1366 × 768
  • Brightness: 250 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: 0°C to +50°C
  • Mounting Structure: Open frame Mount / VESA mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request
19-inch panel mount industrial touch monitor for equipment integration

ETH190TCIPA00

19“ Panel Mount Touch Monitor

19" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 19"
  • Resolution: 1280 × 1024
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen, AG surface treatment.
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
19-inch iron-frame industrial touch monitor with VESA and embedded mounting

ETT190TCFPC02-6

19" IK10 Industrial Touch Monitor

19" Industrial Monitor Embedded Open Frame VESA
  • Size: 19"
  • Resolution: 1280 × 1024
  • Brightness: 250 nits
  • Touch Type: PCAP Touch screen
  • Cover Glass: 6 mm tempered cover glass
  • Impact Protection: IK10-rated front protection
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: 0°C to +50°C
  • Power Supply: DC 12V
  • Mounting Structure: Embedded / VESA mount / Open Frame Mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15-inch ,17inch, 19inch 4:3 open frame touch monitor with front step for flush mounting

ETT190TCOPA01

19” Open Frame Touch Monitor

19" Industrial Monitor Open Frame VESA
  • Size: 19"
  • Resolution: 1280 × 1024
  • Brightness: 250 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Open frame / VESA mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request
21.5-inch 23.8inch ,27inch iron-frame industrial touch monitor with VESA and embedded mounting

ETH215TCFPC01-6

21.5" Sunlight Readable Touch Monitor

21.5" Industrial Monitor Outdoor Monitor Embedded Open Frame VESA
  • Size: 21.5"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP Touch Screen with AG Surface Treatment
  • Cover Glass: 6 mm tempered cover glass
  • Impact Protection: IK10-rated front protection
  • Bonding Type: Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Embedded / VESA / Open Frame Mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5-inch,21.5",23,8",27",32" panel mount industrial touch monitor for equipment

ETH215TCIPA00

21.5" High Brightness Touch Monitor

21.5" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 21.5"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
Open-frame PCAP touch monitor with pure-flat glass for embedded installation, available in 21.5, 23.8, 27 and 32 inches

ETH215TCONB01

21.5" High Brightness Open Frame Touch Monitor

21.5" Industrial Monitor Open Frame VESA
  • Size: 21.5"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch Screen
  • Cover Glass: 2 mm tempered glass with AG + AF surface treatment
  • Bonding Type: Air Bonding
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: 0°C to +50°C
  • Power Supply: DC 12V
  • Mounting Structure: Open Frame Mount / VESA Mount
  • Recommended Application: High-Ambient-Light Indoor Environments

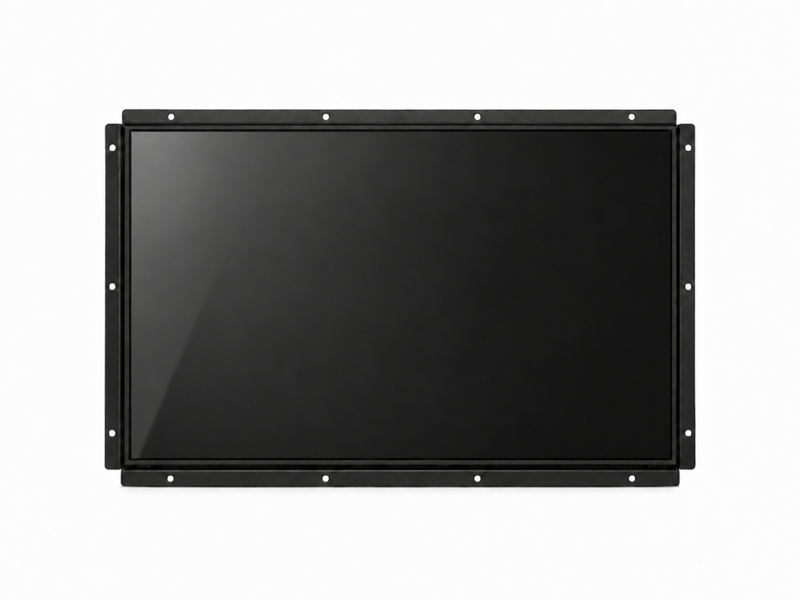

21.5inch and 32-inch outdoor open-frame non-touch industrial monitor without a front bezel for embedded installation

ETH215TCOPN06

21.5" Industrial Monitor

21.5" Industrial Monitor Outdoor Monitor Open Frame VESA
  • Size: 21.5"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: Non-touch
  • Interface: HDMI + VGA
  • Power Supply: DC 12V
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Open Frame / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5-inch,21.5",23.8", 27", 32" open frame touch monitor with front step for flush mounting

ETT215TCOPA00

21.5” Open Frame Touch Monitor

21.5" Industrial Monitor Open Frame VESA
  • Size: 21.5"
  • Resolution: 1920 × 1080
  • Brightness: 250 nits
  • Touch Type: Pcap Touch Screen
  • Bonding Type: Air / Optical
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: 0°C to +50°C
  • Mounting Structure: Open frame / VESA mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request

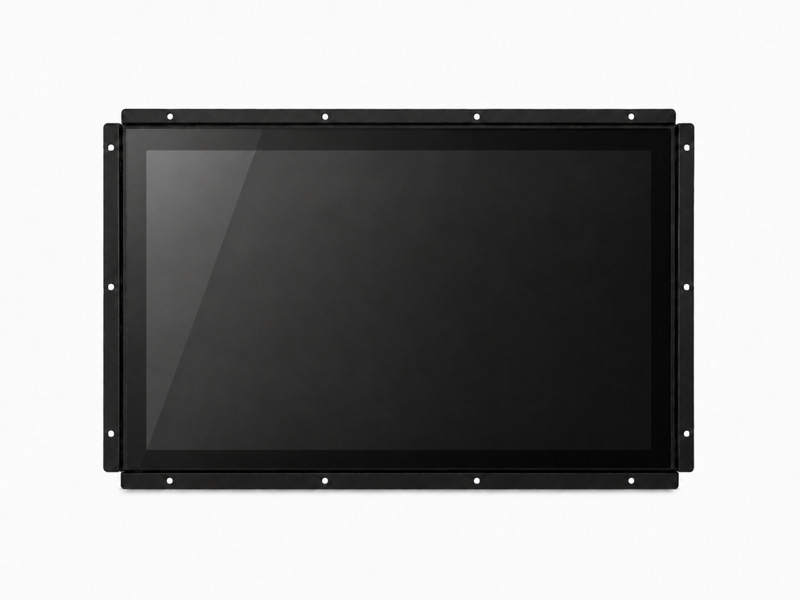

21.5-inch 23.8inch ,27inch iron-frame industrial touch monitor with VESA and embedded mounting

ETH238TCFPC02

23.8" High Brightness Touch Monitor

23.8" Industrial Monitor Outdoor Monitor Open Frame VESA
  • Size: 23.8"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen with AG surface treatment
  • Bonding Type: Air bonding, Support Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Open Frame Mount / VESA Mount
  • Recommended Application: Indoor, Semi-Outdoor, and Sheltered Outdoor Applications
18.5-inch,21.5",23,8",27",32" panel mount industrial touch monitor for equipment

ETH238TCIPA00

23.8" High Brightness Touch Monitor

23.8" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 23.8"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen with AG surface treatment
  • Bonding Type: Air bonding, Support Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
21.5-inch 23.8inch ,27inch iron-frame industrial touch monitor with VESA and embedded mounting

ETT238TCFPC01-6

23.8" IK10 Industrial Touch Monitor

23.8" Industrial Monitor Embedded Open Frame VESA
  • Size: 23.8“
  • Resolution: 1920 × 1080
  • Brightness: 250 nits
  • Touch Type: PCAP touch Screen
  • Cover Glass: 6 mm tempered cover glass
  • Impact Protection: IK10-rated front protection
  • Interface: HDMI + VGA + DP + USB Touch
  • Operating Temperature: 0°C to +50°C
  • Mounting Structure: Open frame / VESA / Embedded
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5-inch,21.5",23.8", 27", 32" open frame touch monitor with front step for flush mounting

ETT238TCOPA00

23.8" Open Frame Touch Monitor

23.8" Industrial Monitor Open Frame VESA
  • Size: 23.8"
  • Resolution: 1920 × 1080
  • Brightness: 250 nits
  • Touch Type: PCAP touch screen
  • Bonding Type: Standard: Air Bonding; Optional: Optical Bonding
  • Interface: HDMI + VGA + DVI + USB Touch
  • Operating Temperature: 0°C to +50°C
  • Mounting Structure: Open frame / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
Open-frame PCAP touch monitor with pure-flat glass for embedded installation, available in 21.5, 23.8, 27 and 32 inches

ETH270TCONB01

High Brightness Touch Monitor

27” Industrial Monitor Outdoor Monitor Open Frame VESA
  • Size: 27"
  • Resolution: 1920 ×1080
  • Brightness: 1500 nits
  • Touch Type: PCAP touch screen ,AG surface treatment
  • Bonding Type: Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +60°C
  • Mounting Structure: Open frame / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
21.5-inch 23.8inch ,27inch iron-frame industrial touch monitor with VESA and embedded mounting

ETT270TCFPC01-6

27″ IK10 Industrial Touch Monitor

27” Industrial Monitor Open Frame VESA
  • Size: 27"
  • Resolution: 1920 ×1080
  • Brightness: 300 nits
  • Touch Type: PCAP touch screen
  • Cover Glass: 6 mm tempered cover glass
  • Impact Protection: IK10-rated front protection
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: 0°C to +50°C
  • Mounting Structure: Open frame / Embedded / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5-inch,21.5",23.8", 27", 32" open frame touch monitor with front step for flush mounting

ETT270TCOPA00

27" Open Frame Touch Monitor

27” Industrial Monitor Open Frame VESA
  • Size: 27"
  • Resolution: 1920 ×1080
  • Brightness: 300 nits
  • Touch Type: PCAP touch screen
  • Bonding Type: Air / Optical
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: 0°C to +50°C
  • Power Supply: DC 12V
  • Mounting Structure: Open frame / VESA / Embedded
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5-inch,21.5",23,8",27",32" panel mount industrial touch monitor for equipment

ETH320TCIPA00

32" High Brightness Touch Monitor

32“ Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 32”
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP Touch Screen with AG Surface Treatment
  • Cover Glass: 3 mm tempered cover glass
  • Bonding Type: Air bonding
  • Interface: HDMI + VGA + USB Touch
  • Power Supply: DC 12V / AC 220V
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
Open-frame PCAP touch monitor with pure-flat glass for embedded installation, available in 21.5, 23.8, 27 and 32 inches

ETT320TCONB01

32" Open Frame Touch Monitor

32“ Industrial Monitor Open Frame VESA
  • Size: 32"
  • Resolution: 1920 × 1080
  • Brightness: 400 nits
  • Touch Type: PCAP Touch Screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: 0°C to +50°C
  • Mounting Structure: Open frame / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5-inch,21.5",23.8", 27", 32" open frame touch monitor with front step for flush mounting

ETT320TCOPA00

32" Industrial Touch Monitor

32“ Industrial Monitor Open Frame VESA
  • Size: 32"
  • Resolution: 1920 × 1080
  • Brightness: 400 nits
  • Touch Type: PCAP touch screen
  • Bonding Type: Air bonding
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: 0°C to +50°C
  • Mounting Structure: Open frame / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
INSTALLATION CHECK

Check the Fit for Your VESA Installation

Before choosing a wall bracket, monitor arm or equipment mount, check the mechanical drawing for your selected model. Screen size alone does not determine mounting compatibility.

Rear view of an industrial touch monitor showing four VESA mounting holes and ventilation slots
Rear mounting example. Hole spacing and enclosure details depend on the selected model.

Mounting Pattern & Screws

Confirm the hole spacing, screw thread and permitted screw insertion depth. If your bracket requires 75 × 75 mm or 100 × 100 mm, specify that pattern when enquiring so we can check the model and configuration.

Weight & Rear Clearance

Match the mount's load rating to the monitor weight. Leave room for video, touch and power connectors, cable bends and ventilation. Check that the mounting plate does not block ports or service access.

Enclosure & Protection

VESA mounting is available on selected open-frame and panel-mount configurations. Confirm the rear mounting arrangement for the version you order and whether it needs a protective equipment enclosure. A front IP65 rating does not cover the rear housing or connectors.

FAQ

VESA Mount Monitor FAQs

The mounting pattern depends on the model and configuration. Request the mechanical drawing to confirm the hole layout for the version you plan to order. If you already have a bracket, send its drawing so we can check compatibility.

VESA compatibility describes the mounting interface, not the supplied accessories. If you need a bracket or stand, include it in your enquiry and confirm the supply scope in the quotation.

Check that the PC's video output matches an input on the selected monitor. Touch models also need a compatible touch connection, typically USB. These monitors use an external computer; for a display with a built-in computer, see our industrial panel PCs.

Outdoor suitability depends on the complete configuration and installation, including sunlight exposure, temperature, sealing and heat dissipation. High brightness alone is not enough. See our outdoor industrial monitors and tell us how the display will be protected.

Yes. Request the drawing for the model you are considering and confirm the dimensions before ordering. If you are replacing an existing display, send its drawing or installation dimensions for comparison.
OEM PROJECTS

Discuss Your VESA Mount Monitor Requirements

Start with a listed model or send your equipment requirements for model matching. We can review changes to brightness, touch technology, cover glass, interfaces and mounting structure. The quotation will identify the agreed configuration.

For installation into a cabinet cutout, you can also explore our panel mount touch monitors.

What to Include in Your Enquiry

  • Preferred model or screen size
  • Installation environment, required VESA pattern or bracket drawing
  • Brightness, touch, video input and power requirements
  • Sample quantity and estimated annual demand

Send the details you have. If the specification is still being developed, we can help identify what needs to be confirmed.
