OUTDOOR ADVERTISING DISPLAY · OPEN FRAME / EMBEDDED

Open Frame High Brightness Digital Signage Displays

High brightness digital signage displays with HDMI input and USB / SD card playback, designed for embedded installation in outdoor advertising cabinets, EV charging stations and kiosk equipment.

Open Frame High Brightness LCD HDMI Input USB / SD Card Playback OEM Mounting Structure

Browse standard open frame digital signage display models by size, or send your cabinet drawing for review. Eagle Touch can help confirm brightness, HDMI input, USB / SD card media playback, speaker output, operating temperature, connector position and mounting structure before quotation.

AVAILABLE MODELS

Open Frame Digital Signage Display Models

Select a standard high brightness digital signage display model below, or use it as the base platform for OEM customization. Size, brightness, playback method, interface, audio output and embedded mounting structure can be reviewed according to your outdoor advertising project.

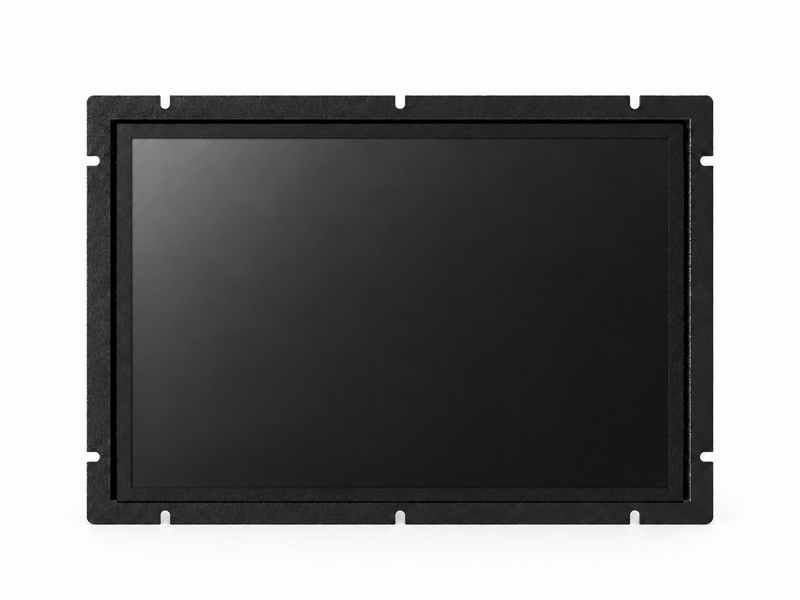

18.5", 21.5",32"High brightness open frame digital signage display for outdoor advertising

ETH185TCIPC01

18.5“ Open Frame High brightness Digital Signage Display

18.5“ Industrial Monitor Outdoor Advertising Display Outdoor Monitor Embedded Open Frame

Size: 18.5"
Resolution: 1920 × 1080
Brightness: 1500 nits
Media Playback: USB / SD Card
Supported Video Formats: MPG、MPG-1、MPG-2、MPG-4、AVI 、MP4、TS、 MKV、WMV、RM、RMVB

Supported Audio Formats: MP3、WMA
Supported Image Formats: JPEG、BMP
Interface: HDMI input × 1, USB × 1, SD card slot × 1
Audio Output: 2 ×10W (8Ω)
Operating Temperature: -20°C to +65°C
Mounting Structure: Open frame / embedded installation
Customization: Size, brightness, mounting structure available on request
Power Supply: AC 110-240 V

ETT215TCIPC01

21.5” Open Frame High brightness Digital Signage Display

21.5" Industrial Monitor Outdoor Advertising Display Outdoor Monitor Embedded Open Frame

Size: 21.5"
Resolution: 1920 × 1080
Brightness: 1500 nits
Media Playback: USB / SD Card
Supported Video Formats: MPG、MPG-1、MPG-2、MPG-4、AVI 、MP4、TS、 MKV、WMV、RM、RMVB

Supported Audio Formats: MP3、WMA
Supported Image Formats: JPEG、BMP
Interface: HDMI input × 1, USB × 1, SD card slot × 1
Audio Output: 2 ×10W (8Ω)
Operating Temperature: -20°C to +65°C
Mounting Structure: Open frame / embedded installation
Power supply: AC 220V
Customization: Size, brightness, mounting structure available on request

ETH320TCIPC05

32" Open Frame High brightness Digital Signage Display

32“ Industrial Monitor Outdoor Advertising Display Outdoor Monitor Embedded Open Frame

Size: 32"
Resolution: 1920 × 1080
Brightness: 1500 nits
Media Playback: USB / SD Card
Supported Video Formats: MPG、MPG-1、MPG-2、MPG-4、AVI 、MP4、TS、 MKV、WMV、RM、RMVB

Supported Audio Formats: MP3、WMA
Supported Image Formats: JPEG、BMP
Interface: HDMI input × 1, USB × 1, SD card slot × 1
Audio Output: 2 ×10W (8Ω)
Operating Temperature: -20°C to +65°C
Mounting Structure: Open frame / embedded installation
Power Supply: AC 110-240 V
Customization: Size, brightness, mounting structure available on request

Not sure which size or structure is suitable? Send your application, cabinet space, brightness target, playback method, interface, speaker requirement and quantity. We will help check the closest available model.

DIGITAL SIGNAGE CONFIGURATION OPTIONS

Key Options for Outdoor Advertising Display Projects

An embedded advertising display needs more than a normal LCD monitor. Brightness, playback method, interface, heat dissipation, audio output and mounting structure should be matched to the real cabinet design.

High Brightness LCD

High brightness LCD options are available for outdoor-facing advertising cabinets, EV charger displays, kiosk signage and commercial display equipment.

USB / SD Card Media Playback

Models can support USB or SD card playback for advertising video, images and simple media content, without adding a separate external player.

HDMI Input

HDMI input is available when the display needs to connect with a media player, industrial PC, Android board, advertising controller or other external source.

Open Frame / Embedded Structure

Open frame structure is suitable for cabinet integration, rear mounting, embedded installation and OEM equipment where the display is installed behind the front panel.

Speaker and Audio Output

Audio output and speaker options can be reviewed for advertising content, public information display and commercial signage applications.

OEM Mechanical Review

Bracket position, mounting holes, cable outlet, connector direction and installation depth can be reviewed according to your cabinet drawing.

APPLICATIONS

Built for Embedded Outdoor Advertising Equipment

This type of display is normally used when the screen is built into another machine or outdoor cabinet. It is different from a finished wall-mounted advertising player.

EV Charging Stations

For charging station cabinets that need a high brightness advertising screen above or beside the charging interface.

Outdoor Kiosks

For information kiosks, service terminals and public equipment that need outdoor-facing display visibility.

Advertising Cabinets

For custom advertising cabinets where the display must be mounted inside the customer’s own metal structure.

Public Information Displays

For transport, parking, retail, outdoor service points and industrial public-use display applications.

CUSTOMIZATION & RFQ REVIEW

Need a Custom Open Frame Digital Signage Display?

If a standard model does not fully match your project, send the application, cabinet drawing, screen size, brightness, playback method, interface, audio requirement, operating temperature and quantity. We will check whether a standard model can be used directly, adjusted, or built as a custom version.

Application & Environment

EV charger, outdoor advertising cabinet, kiosk, parking system, or public information display
Indoor, semi-outdoor, outdoor-facing, or direct outdoor installation
Sunlight exposure and expected viewing distance
Rain, dust, heat, public-use environment, or cabinet ventilation condition
Operating temperature and installation location

Display & Playback

Required screen size and resolution
Brightness target, such as 1000 nits, 1500 nits, or higher
HDMI input only, USB playback, SD card playback, or external media player
Supported video, image and audio format requirements
Playback control, content update method, and display schedule requirement

Mounting & Cabinet Fit

Open frame, rear mount, embedded installation, or custom bracket structure
Front panel cut-out, fixing points and available installation depth
Connector direction, cable outlet and service access space
Cooling space, airflow direction and heat dissipation condition
Cabinet drawing or front panel drawing for fit review

Interface, Power & Project Details

HDMI, USB, SD card slot, audio output, or other interface requirement
12V, 24V, aviation connector, or custom power input
Speaker output, volume control or internal audio requirement
Sample quantity, annual quantity and delivery schedule
Certification, packing, labeling or OEM requirement

With these details, Eagle Touch can recommend a suitable open frame high brightness digital signage display and confirm whether brightness, playback board, mounting bracket, connector layout or structure customization is needed.

Need a Different Display Type?

This page is for open frame high brightness digital signage displays used in outdoor advertising and embedded equipment. If your project requires a different structure or more detailed selection guidance, these pages may be more suitable.

Sunlight Readable Monitor

For brightness selection, outdoor readability, optical bonding and AG / AR glass guidance.

View selection guide

Open Frame Monitor

For OEM equipment that needs an open frame monitor structure for enclosure or cabinet integration.

View open frame models

Outdoor Touch Monitor

For outdoor equipment that needs front IP65 protection, cover glass and operation interface integration.

View outdoor display models
