15" · INDUSTRIAL MONITOR

15" Industrial Monitor and Touch Display Models

Factory-direct 15 inch industrial monitor and touch display models for OEM equipment, industrial control panels, machine operation terminals, automation systems, embedded HMI projects, SCADA terminals, and retrofit applications. Available with touch or non-touch options, panel mount, open frame, VESA mount, high-brightness display, cover glass, interface, and custom structure support.

Factory Direct 15" Industrial Display Touch / Non-Touch Options High Brightness Options Cover Glass Options OEM Customization Fast Quotation
15"Industrial Monitor

Browse available 15 inch industrial monitor and touch display models below. These models are suitable for industrial control panels, machine operation terminals, automation equipment, embedded HMI systems, SCADA / process control terminals, and replacement or retrofit projects using existing controllers.

This page is mainly for 15" model selection and quotation. To compare other screen sizes, mounting structures, brightness levels, and touch options, explore our full range of industrial display monitors and touch monitors.

AVAILABLE MODELS

Available 15" Industrial Monitor Models

Select a standard 15" industrial monitor model below or use it as the base model for OEM customization. We can review the mounting structure, touch type, brightness, interface, cover glass, operating environment, and quantity according to your project requirements.

19" 10.4",15inch metal frame touch monitor for embedded industrial installation

ETH150TCFPC02-6

15" Sunlight Readable Touch Monitor

15" Industrial Monitor Outdoor Monitor Embedded Open Frame VESA
  • Size: 15"
  • Resolution: 1024 × 768
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen
  • Cover Glass: 6 mm tempered cover glass, AG surface Treatment
  • Impact Protection: IK10-rated front protection
  • Bonding Type: Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Power supply: DC 12V / 4A
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Open frame / VESA / Embedded
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15，17 inch industrial touch monitor with black brushed metal front bezel on white background

ETH150TCIPA00

15" Panel Mount Touch monitor

15" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 15"
  • Resolution: 1024 × 768
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request
19" 10.4",15inch metal frame touch monitor for embedded industrial installation

ETT150TCFPC02-6

15" IK10 Industrial Touch Monitor

15" Industrial Monitor Open Frame VESA
  • Size: 15"
  • Resolution: 1024 × 768
  • Brightness: 350 nits
  • Touch Type: PCAP Touch Screen
  • Cover Glass: 6 mm tempered cover glass
  • Impact Protection: IK10-rated front protection
  • Interface: HDMI + VGA + USB Touch
  • Power Supply: DC 12V
  • Mounting Structure: VESA / Embedded
  • Customization: Cover glass, brightness, interface and mounting structure available on request

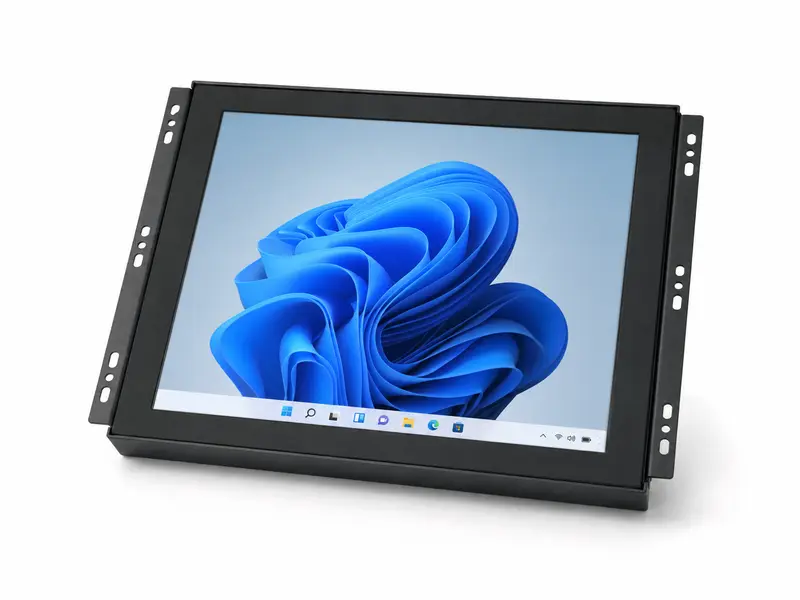

15,17,19 inch stepped open frame touch monitor for embedded industrial applications

ETT150TCOPA00

15" Open Frame Touch Monitor

15" Industrial Monitor Open Frame VESA
  • Size: 15"
  • Resolution: 1024 × 768
  • Brightness: 350 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Power Supply: DC 12V
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Open frame Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15,17,19 inch stepped open frame touch monitor for embedded industrial applications

ETT150TCOPA02

15" Open Frame Touch Monitor

15" Industrial Monitor Open Frame VESA
  • Size: 15"
  • Resolution: 1024 × 768
  • Brightness: 350 nits
  • Viewing angle: 88/88/88/88
  • Touch Type: PCAP Touch Screen
  • Interface: VGA + HDMI + DP
  • Power supply: DC 12 V, 3 A via Aviation Connector
  • Mounting Structure: VESA / Open Frame / Embedded
  • Customization: Cover glass, brightness, interface and mounting structure available on request
open frame touch monitor

ETT150TCOPN03

15" Open Frame Touch Monitor

15" Industrial Monitor Open Frame
  • Size: 15"
  • Resolution: 1024 × 768
  • Brightness: 350 nits
  • Touch Type: PCAP Touch Screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Open Frame / Embedded
  • Customization: Cover glass, brightness, interface and mounting structure available on request

Not sure which 15" model is suitable? Send us your application, mounting method, brightness target, touch type, interface, operating environment, and estimated quantity. We will help check the closest available model.

CONFIGURATION & RFQ REVIEW

Need a Custom 15" Industrial Monitor?

When a standard 15 inch industrial monitor does not fully match your project, please send us your application, working environment, display requirements, mounting method, interface needs, and estimated quantity. We will check whether a standard model can be used directly, whether small adjustments are enough, or whether a custom version is needed.

Application & Environment

  • Application project or equipment type
  • Industry or final use scenario
  • Indoor, semi-outdoor, or industrial equipment use
  • Operating temperature or special environment requirements
  • Control panel, machine terminal, SCADA, or embedded HMI installation

Display Specifications

  • Required 15" display format
  • Resolution or display ratio requirement
  • Brightness target
  • Standard brightness, high-brightness, or sunlight-readable display
  • Landscape or portrait use requirement

Touch & Interface

  • PCAP touch, resistive touch, or non-touch version
  • USB, I²C, or RS232 touch interface
  • HDMI, VGA, DVI, DP, or other video input
  • Power input requirement
  • Cover glass, AG / AR / AF, or logo printing requirement

Mounting & Project Details

  • Panel mount, open frame, VESA mount, metal frame, or custom structure requirement
  • Drawing or available installation space, if available
  • Standard model preference, if available
  • Sample quantity and estimated annual quantity
  • Target schedule or project stage

With these details, we can recommend a suitable 15" industrial monitor model, confirm whether customization is required, and provide a standard or custom quotation.
