OUTDOOR MONITOR

Outdoor Touch Monitor for EV Chargers, Kiosks and Industrial Equipment

Factory-direct outdoor touch monitor platforms with high brightness LCD, PCAP touch, front IP65 protection, cover glass, optical bonding and OEM mounting options for outdoor equipment integration

Factory Direct OEM / ODM Ready High Brightness Options Front IP65 Available

Browse standard outdoor touch monitor models by size, or send your enclosure drawing for review. Eagle Touch can help confirm brightness, PCAP touch, front IP65 protection, cover glass, optical bonding, interface and mounting structure before quotation.

AVAILABLE MODELS

Outdoor Touch Monitor Models

Select a standard outdoor touch monitor model below, or use it as the base platform for OEM customization. Size, brightness, touch panel, cover glass, interface, front protection and mounting structure can be reviewed according to your project.

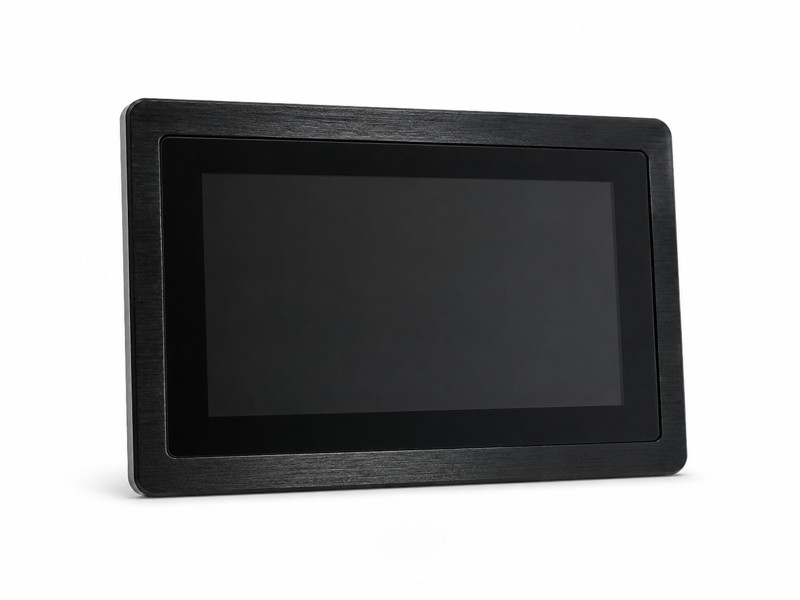

7 inch industrial touch monitor with black brushed metal front bezel on white background

ETH070TCIPA02

7" Panel Mount Touch Monitor

7" Industrial Monitor Outdoor Monitor Panel Mount
  • Size: 7"
  • Resolution: 1024 × 600
  • Brightness: 1000 nits
  • Touch screen: Pcap Touch Screen
  • Interface: HDMI + VGA + USB Touch
  • Working temperature: -20°C to +70°C
  • IP degree: IP65 front waterproof
  • Power supply: 12VDC
  • Mounting Structure: Panel Mount
  • Customization Available: Cover glass / brightness / interface / bracket
Industrial open frame touch monitors in 7, 10.1, 13.3 and 15.6-inch sizes

ETH070TCOPA01

7" High Brightness Industrial Monitor

7" Industrial Monitor Outdoor Monitor Open Frame
  • Size: 7"
  • Resolution: 1024 × 600
  • Brightness: 700 nits
  • Touch Type: Pcap touch screen
  • Interface: VGA+HDMI
  • Mounting Structure: Open Frame Mount
  • Operating Temperature: -30°C to 85°C
  • IP Degree: Front Panel IP65
  • Customization Available: Cover glass / brightness / interface / bracket
7 inch open frame touch monitor module with silver metal mounting frame

ETT070H701

7" Open Frame Industrial Monitor

7" Industrial Monitor Outdoor Monitor Open Frame
  • Size: 7"
  • Resolution: 1024 × 600
  • Brightness: 700 nits
  • Interface: HDMI + VGA
  • Power Supply: 12V 3A
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Open Frame Mount
  • Customization: brightness, interface, bracket

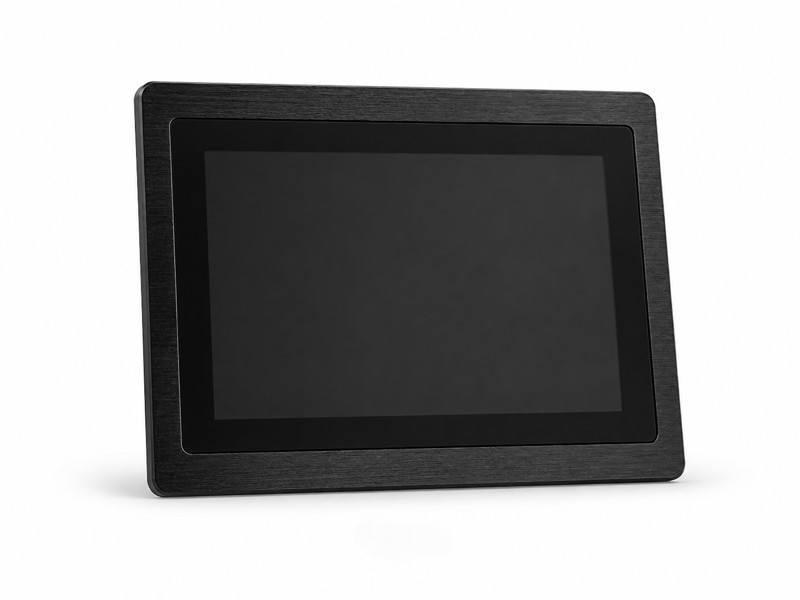

10.1 inch industrial touch monitor with black brushed metal front bezel on white background

ETH101TCIPA01

10.1" Panel Mount Touch Monitor

10.1" Industrial Monitor Outdoor Monitor Panel Mount
  • Size: 10.1"
  • Resolution: 1280 × 800
  • Brightness: 1000 nits
  • Touch Type: PCAP Touch Screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request
10.1 inch industrial touch monitor with black brushed metal front bezel on white background

ETH101TCIPA09

10.1" Sunlight Readable Touch Monitor

10.1" Industrial Monitor Outdoor Monitor Panel Mount
  • Size: 10.1"
  • Resolution: 1280 × 800
  • Brightness: 1200 nits, with Auto-Dimming Function
  • Touch Type: PCAP touch screen with water droplet tolerance and UV-resistant treatment
  • Cover Glass: 3 mm tempered cover glass, AG + AR treated
  • Bonding Type: Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Power Supply: DC 9 - 36 V
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount
sunlight readable Open frame touch monitor with mounting brackets

ETH101TCOPA03-6

10.1" Sunlight Readable Touch Monitor

10.1" Industrial Monitor Outdoor Monitor Open Frame
  • Size: 10.1"
  • Resolution: 1280 × 800
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen, supports water droplet touch and UV-resistant treatment.
  • Vandal-resistant: 6 mm tempered cover glass provides IK10-rated impact protection for public-use and vandal-resistant applications.
  • Bonding Type: Optical bonding with OCR / OCA
  • Interface: HDMI + VGA + USB Touch
  • Operating Temp.: -20°C to +70°C
  • IP Rating: Front IP65 waterproof protection with sealing gasket for panel-mounted installation.
  • Mounting Structure: Open Frame Mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request
19" 10.4",15inch metal frame touch monitor for embedded industrial installation

ETH104TCFPB01

10.4" Sunlight Readable Touch Monitor

10.4" Industrial Monitor Outdoor Monitor Open Frame VESA
  • Size: 10.4"
  • Resolution: 1024 × 768
  • Brightness: 1200 nits
  • Touch Type: PCAP Touch Screen
  • Cover Glass: 3mm thickness Cover glass
  • Interface: HDMI + VGA + USB Touch
  • Power supply: DC 12 V
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Open Frame / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
12.1 inch industrial touch monitor with black brushed metal front bezel on white background

ETH121TCIPA00

12.1" Panel Mount Touch Monitor

12.1" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 12.1"
  • Resolution: 1024 × 768
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Power Supply: 12V DC
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Panel Mount
  • IP Rating: Front IP65
  • Customization: Cover glass, brightness, interface and mounting structure available on request
19" 10.4",15inch metal frame touch monitor for embedded industrial installation

ETH150TCFPC02-6

15" Sunlight Readable Touch Monitor

15" Industrial Monitor Outdoor Monitor Embedded Open Frame VESA
  • Size: 15"
  • Resolution: 1024 × 768
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen
  • Cover Glass: 6 mm tempered cover glass, AG surface Treatment
  • Impact Protection: IK10-rated front protection
  • Bonding Type: Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Power supply: DC 12V / 4A
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Open frame / VESA / Embedded
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15，17 inch industrial touch monitor with black brushed metal front bezel on white background

ETH150TCIPA00

15" Panel Mount Touch monitor

15" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 15"
  • Resolution: 1024 × 768
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15.6 inch widescreen industrial touch monitor with black brushed metal front bezel on white background

ETH156TCIPA00

15.6" Panel Mount Touch Monitor

15.6" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 15.6"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP Touch screen , AG surface treatment
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
Industrial open frame touch monitors in 7, 10.1, 13.3 and 15.6-inch sizes

ETH156TCOPA03

15.6" Sunlight Readable Touch Monitor

15.6" Industrial Monitor Outdoor Monitor Embedded Open Frame VESA
  • Size: 15.6"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen with water droplet tolerance and UV-resistant treatment
  • Cover Glass: 3 mm / 6 mm tempered cover glass, AG surface treatment
  • Vandal Resistance: Vandal-resistant front design
  • Bonding Type: Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65 with sealing gasket
  • Mounting Structure: Open frame
  • Customization: Cover glass, brightness, interface and mounting structure available on request
15，17 inch industrial touch monitor with black brushed metal front bezel on white background

ETH170TCIPA00

17" Panel Mount Touch Monitor

17" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 17"
  • Resolution: 1280 × 1024
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen , AG surface treatment
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Panel Mount / VESA
  • IP Rating: Front IP65
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5,21.5,23.8,27 ,32"inch aluminum front panel mount touch monitor on white background

ETH185CT4IPF01

18.5” Sunlight Readable Touch Monitor

18.5“ Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 18.5"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen , AG surface treatment
  • Cover Glass: 4 mm tempered cover glass
  • Vandal Resistance: Vandal-resistant front design
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5,21.5,23.8,27 ,32"inch aluminum front panel mount touch monitor on white background

ETH185TCIPA00

18.5" Panel Mount Touch Monitor

18.5“ Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 18.5"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen , AG surface treatment
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Panel Mount / VESA
  • IP Rating: Front IP65
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5", 21.5",32"High brightness open frame digital signage display for outdoor advertising

ETH185TCIPC01

18.5” Open Frame High brightness Digital Signage Display

18.5″ Industrial Monitor Outdoor Advertising Display Outdoor Monitor Embedded Open Frame
  • Size: 18.5"
  • Resolution: 1920 × 1080
  • Brightness: 1500 nits
  • Media Playback: USB / SD Card
  • Supported Video Formats: MPG、MPG-1、MPG-2、MPG-4、AVI 、MP4、TS、 MKV、WMV、RM、RMVB
  • Supported Audio Formats: MP3、WMA
  • Supported Image Formats: JPEG、BMP
  • Interface: HDMI input × 1, USB × 1, SD card slot × 1
  • Audio Output: 2 ×10W (8Ω)
  • Operating Temperature: -20°C to +65°C
  • Mounting Structure: Open frame / embedded installation
  • Customization: Size, brightness, mounting structure available on request
  • Power Supply: AC 110-240 V
19 inch industrial touch monitor with black brushed metal front bezel on white background

ETH190TCIPA00

19“ Panel Mount Touch Monitor

19" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 19"
  • Resolution: 1280 × 1024
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen, AG surface treatment.
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
21.5" 23.8",27",10.1 inch metal frame touch monitor with black front bezel

ETH215TCFPC01-6

21.5" Sunlight Readable Touch Monitor

21.5" Industrial Monitor Outdoor Monitor Embedded Open Frame VESA
  • Size: 21.5"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP Touch Screen with AG Surface Treatment
  • Cover Glass: 6 mm tempered cover glass
  • Impact Protection: IK10-rated front protection
  • Bonding Type: Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Embedded / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5,21.5,23.8,27 ,32"inch aluminum front panel mount touch monitor on white background

ETH215TCIPA00

21.5" High Brightness Touch Monitor

21.5" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 21.5"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
Open frame industrial monitor with black mounting brackets and dark non-touch LCD screen

ETH215TCOPN06

21.5" Industrial Monitor

21.5" Industrial Monitor Outdoor Monitor Open Frame VESA
  • Size: 21.5"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: Non-touch
  • Interface: HDMI + VGA
  • Power Supply: DC 12V
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Open Frame / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5", 21.5",32"High brightness open frame digital signage display for outdoor advertising

ETT215TCIPC01

21.5” Open Frame High brightness Digital Signage Display

21.5" Industrial Monitor Outdoor Advertising Display Outdoor Monitor Embedded Open Frame
  • Size: 21.5"
  • Resolution: 1920 × 1080
  • Brightness: 1500 nits
  • Media Playback: USB / SD Card
  • Supported Video Formats: MPG、MPG-1、MPG-2、MPG-4、AVI 、MP4、TS、 MKV、WMV、RM、RMVB
  • Supported Audio Formats: MP3、WMA
  • Supported Image Formats: JPEG、BMP
  • Interface: HDMI input × 1, USB × 1, SD card slot × 1
  • Audio Output: 2 ×10W (8Ω)
  • Operating Temperature: -20°C to +65°C
  • Mounting Structure: Open frame / embedded installation
  • Power supply: AC 220V
  • Customization: Size, brightness, mounting structure available on request
21.5" 23.8",27",10.1 inch metal frame touch monitor with black front bezel

ETH238TCFPC02

23.8" High Brightness Touch Monitor

23.8" Industrial Monitor Outdoor Monitor Open Frame VESA
  • Size: 23.8"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen with AG surface treatment
  • Bonding Type: Air bonding, Support Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Open Frame Mount / VESA Mount
  • Recommended Application: Indoor, Semi-Outdoor, and Sheltered Outdoor Applications
18.5,21.5,23.8,27 ,32"inch aluminum front panel mount touch monitor on white background

ETH238TCIPA00

23.8" High Brightness Touch Monitor

23.8" Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 23.8"
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP touch screen with AG surface treatment
  • Bonding Type: Air bonding, Support Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
Industrial touch monitor with open-frame black mounting structure and front touch glass

ETH270TCONB01

High Brightness Touch Monitor

27” Industrial Monitor Outdoor Monitor Open Frame VESA
  • Size: 27"
  • Resolution: 1920 ×1080
  • Brightness: 1500 nits
  • Touch Type: PCAP touch screen ,AG surface treatment
  • Bonding Type: Optical bonding
  • Interface: HDMI + VGA + USB Touch
  • Operating Temperature: -20°C to +60°C
  • Mounting Structure: Open frame / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5,21.5,23.8,27 ,32"inch aluminum front panel mount touch monitor on white background

ETH320TCIPA00

32" High Brightness Touch Monitor

32“ Industrial Monitor Outdoor Monitor Panel Mount VESA
  • Size: 32”
  • Resolution: 1920 × 1080
  • Brightness: 1000 nits
  • Touch Type: PCAP Touch Screen with AG Surface Treatment
  • Cover Glass: 3 mm tempered cover glass
  • Bonding Type: Air bonding
  • Interface: HDMI + VGA + USB Touch
  • Power Supply: DC 12V / AC 220V
  • Operating Temperature: -20°C to +70°C
  • IP Rating: Front IP65
  • Mounting Structure: Panel Mount / VESA
  • Customization: Cover glass, brightness, interface and mounting structure available on request
18.5", 21.5",32"High brightness open frame digital signage display for outdoor advertising

ETH320TCIPC05

32" Open Frame High brightness Digital Signage Display

32“ Industrial Monitor Outdoor Advertising Display Outdoor Monitor Embedded Open Frame
  • Size: 32"
  • Resolution: 1920 × 1080
  • Brightness: 1500 nits
  • Media Playback: USB / SD Card
  • Supported Video Formats: MPG、MPG-1、MPG-2、MPG-4、AVI 、MP4、TS、 MKV、WMV、RM、RMVB
  • Supported Audio Formats: MP3、WMA
  • Supported Image Formats: JPEG、BMP
  • Interface: HDMI input × 1, USB × 1, SD card slot × 1
  • Audio Output: 2 ×10W (8Ω)
  • Operating Temperature: -20°C to +65°C
  • Mounting Structure: Open frame / embedded installation
  • Power Supply: AC 110-240 V
  • Customization: Size, brightness, mounting structure available on request
18.5", 21.5",32"High brightness open frame digital signage display for outdoor advertising

ETH320TNONB02

32″ High-Brightness Open-Frame Industrial Monitor

32“ Industrial Monitor Outdoor Monitor Open Frame
  • Size: 32"
  • Resolution: 1920 × 1080
  • Brightness: 1500 nits with Automatic Dimming
  • Interface: HDMI + VGA + DP
  • Power Supply: DC 24 V (Phoenix Terminal Block)
  • Operating Temperature: -20°C to +70°C
  • Mounting Structure: Open frame / embedded installation

Not sure which size or structure is suitable? Send your application, drawing, interface requirement, brightness target and quantity. We will help check the closest available model.

OUTDOOR CONFIGURATION OPTIONS

Key Options for Outdoor Industrial Touch Monitor Projects

Outdoor equipment needs more than a standard indoor monitor. Brightness, sealing, touch tuning, cover glass, bonding and mechanical structure should be matched to the real installation.

1000-Nit High Brightness LCD

High brightness LCD options are available for outdoor-facing kiosks, EV chargers, payment terminals and industrial control panels.

Front IP65 Sealing

Front IP65 protection can be configured for cabinet-integrated, panel mount and outdoor-facing touch monitor projects.

PCAP Touch for Outdoor Use

Projected capacitive touch can be matched with cover glass thickness, touch controller, USB, I²C or RS232 interface options.

AG / AR / AF Cover Glass

AG, AR or AF glass can improve front readability, reduce reflection, support easier cleaning, or match the equipment front design.

Optical Bonding for Outdoor Readability

Optical bonding is available for projects that need stronger front glass integration, better readability and improved outdoor display performance.

OEM Mounting Structure

Panel mount, open frame, VESA mount, custom brackets, cable outlet and connector position can be reviewed from your enclosure drawing.

OUTDOOR CUSTOMIZATION & RFQ REVIEW

Need a Custom Outdoor Touch Monitor?

If a standard model does not fully match your project, send the application, environment, screen size, brightness, protection, interface, mounting structure and quantity. We will check whether a standard model can be used directly, adjusted, or built as a custom version.

Application & Environment

  • EV charger, outdoor kiosk, payment terminal, parking system, or industrial cabinet
  • Indoor, semi-outdoor, outdoor-facing, or direct outdoor installation
  • Sunlight exposure and expected viewing condition
  • Rain, moisture, dust, or public-use environment
  • Operating temperature and installation location

Display, Glass & Touch

  • Required screen size and resolution
  • Brightness target, such as 700 nits, 1000 nits, or higher
  • PCAP touch, resistive touch, or no-touch version
  • Cover glass thickness and IK impact requirement
  • AG, AR, AF glass, optical bonding, or logo printing requirement

Protection & Mounting

  • Front IP65 protection requirement
  • Panel mount, open frame, VESA mount, or custom bracket structure
  • Front frame, gasket, sealing surface, or cabinet cut-out design
  • Available installation depth and mechanical space
  • Enclosure drawing or front panel drawing for fit review

Interface, Power & Project Details

  • HDMI, VGA, DVI, DP, LVDS, or other video input
  • USB, I²C, or RS232 touch interface
  • 12V, 24V, aviation connector, or custom power input
  • Cable outlet direction and connector position
  • Sample quantity, annual quantity, delivery schedule, and certification requirement

With these details, Eagle Touch can recommend a suitable outdoor touch monitor model and confirm whether front IP65, high brightness, cover glass, optical bonding, mounting adjustment or interface customization is needed.

CONTACT EAGLE TOUCH

Let’s Discuss Your Requirements

Share your application, requirements, or current challenge. Our team will review the details and recommend a practical way forward.

Response within 1 business day (GMT+8).
